NCV73810V2GEVB

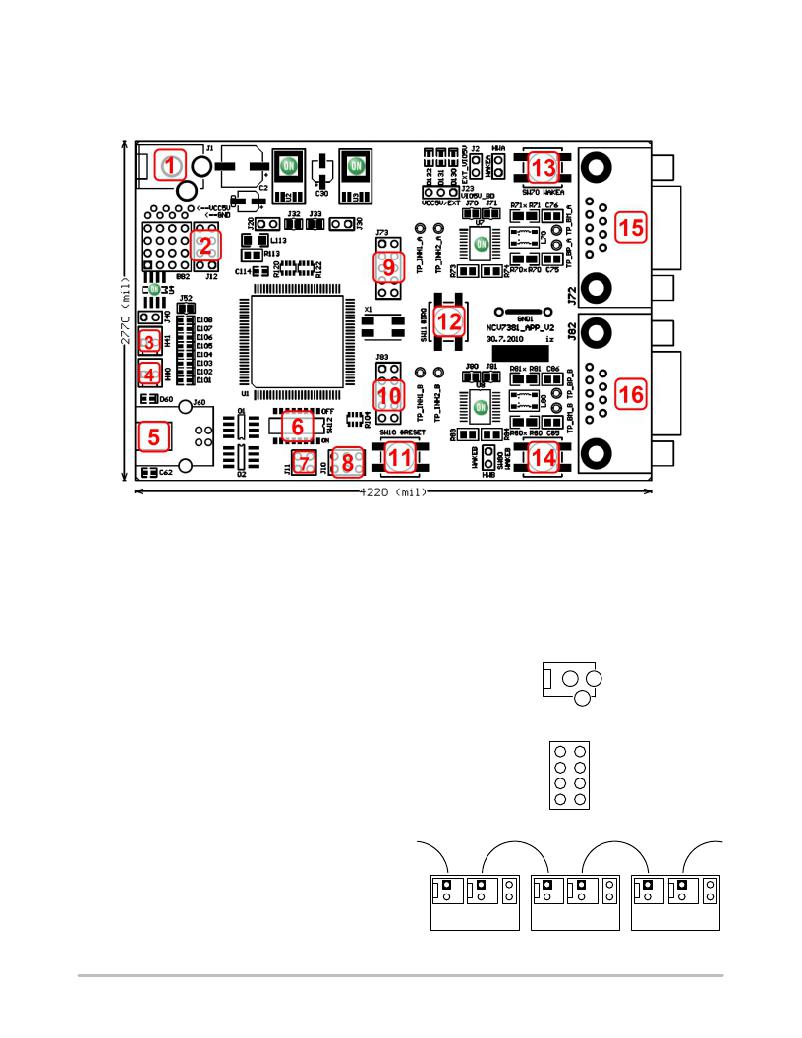

BOARD OVERVIEW
Basic Interface
Legend:
1 Power Supply Input Connector
2 Aux Digital I/O Connector
3 CAN Backbone Connector 1
4 CAN Backbone Connector 2
5 USB Interface
6 Address Switch
7 FlexRay CC Strobe Output Signals
8 BDM Connector (MCU Debugging Interface)
Power Supply Input Connector
Power supply input socket. Plug diameter 2.1 mm, length
14 mm. Maximum input voltage 42 V (Limited by onboard
voltage regulators).
9
10
11
12
13
14
15
16
FlexRay BD Signals Test Points (Channel A)
FlexRay BD Signals Test Points (Channel B)
MCU Reset Switch
MCU External Interrupt Switch
BD Local Wakeup Switch (Channel A)
BD Local Wakeup Switch (Channel B)
FlexRay Bus Connector (Channel A)
FlexRay Bus Connector (Channel B)
J1
Aux Digital I/O Connector
These pin header contains 6 auxiliary MCU signals – one
complete SPI interface (4 pins) and one UART interface
(2 pins). These signals can be also used as general
Input/Output signals for debugging or other purposes.
GND
SS0
MOSI0
TXD1
J12
GND
SCK0
MISO0
RXD1
CAN Backbone Connectors
CAN backbone network is created as parallel connection
of several boards. Each board contains two equivalent
connectors in parallel, so whole network can be prepared
using only simple point-to-point twisted pair.
H40
H41
J40
H40
H41
J40
H40
H41
J40
http://onsemi.com
4
